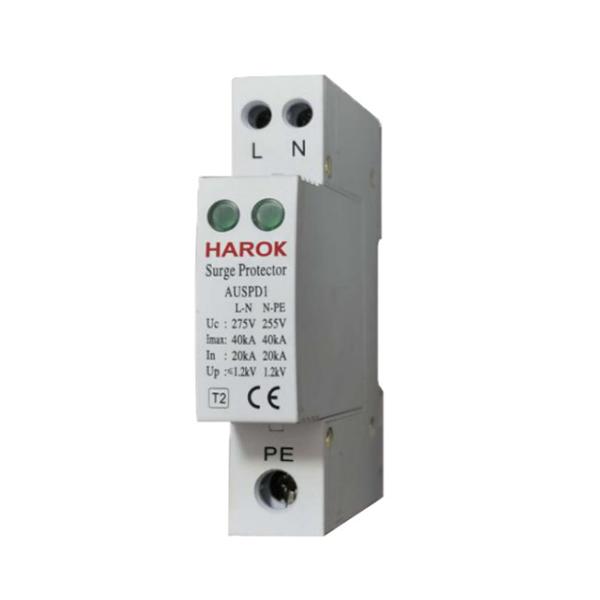

HKSPD1 Control And Protective Switching Device Surge Protection Device 1P

Name: HKSPD1 Control And Protective Switching Device Surge Protection Device 1P
Brand: HAROK
Price: 1 USD

Brand Name : HAROK

Model Number : HKSPD1

MOQ : 3000

Contact Now

HKSPD1 Surge Protection Device

1. General

HKSPD1 is applicable to circuit with 50/60Hz, rated voltage below 380V AC, for power distribution in both household & commercial electric equipment installations. It is designed according to ICE61643-1 and GB18802.1 standards, installed on DIN rail EN 60715 (35mm) by means of fast clip device. It is built in with failure interrupter device, will automatically interrupt when breakdown fails due to overcurrent and overheating. Meanwhile, the warning indicator turns from green to red.

1.1 Pluggable replacement module

1.2 The maximum discharge current: 20kA(8/20µs)

1.3 Reaction rate ≤ 25 ns

1.4 Failure detection indicator

2. Technical parameters

	Standard	ICE61643-1
Electrical features	Model No.	HKSPD1
	Poles	1P
	Un	230Vac 50~6 Hz
	Uc	255Vac 50~60Hz
	In (8/20µs)	10kA
	Imax (8/20µs)	20kA
	Up (8/20µs)	≤ 1.2kV
	tA	≤ 25 ns
Mechanical features	Electrical life	≤4,000
	Mechanical life	≤4,000
	Fail-safe mode	Disconnection
	Failure indication	Green: normal Red: Invalid
	Sheathing Material	PBT UL94VO
	Protection degree	IP20
	Size	679018
	Operating temperature	-25℃ to 60℃
	Storage temperature	-40℃ to 75℃
Installation	Terminal size top/bottom for cable	2.5-25mm²
Installation	Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device

3. Outline and installation dimensions (mm)

HKSPD1 Control And Protective Switching Device Surge Protection Device 1P
